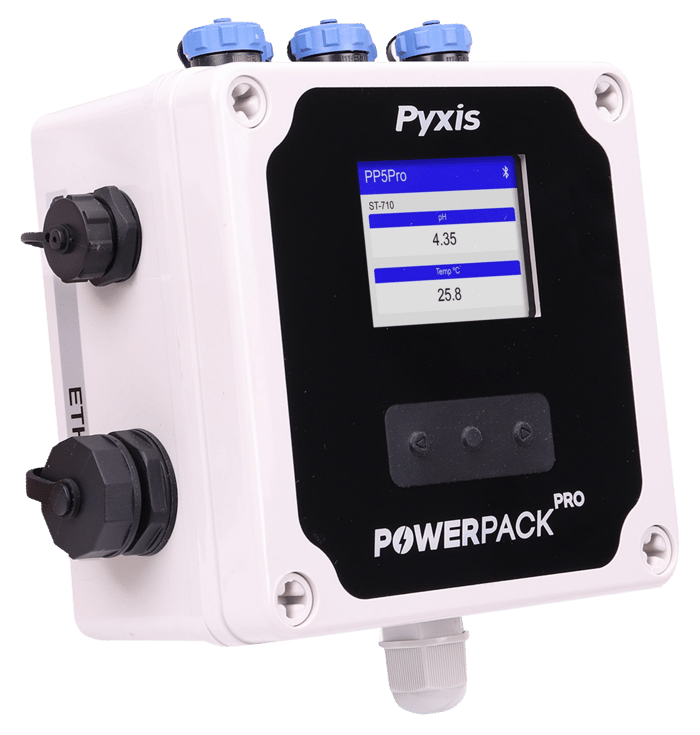

The Pyxis PowerPack PRO5 is a five-channel power and display unit for Pyxis inline sensors. It powers up to five 7-pin Pyxis sensors from a single 100–240 VAC supply (24 VDC, 30 W), shows their live readings on a 2.4-inch colour display, and relays their signals onward to a controller, PLC or SCADA system that lacks the power budget or channel count to drive the sensors directly.

It passes through up to ten 4–20 mA outputs plus RS-485 Modbus RTU, adds an RJ45 Ethernet port and Bluetooth 5.0 for the uPyxis app, and updates sensor firmware from a USB host port. 8-pin Pyxis sensors connect through the optional CC-78M adapter. The IP54 ABS enclosure mounts on the wall next to the sensors, keeping cable runs short and installation simple.

Powers up to five Pyxis sensors simultaneously from one 100–240 VAC input (24 VDC, 30 W)
2.4″ colour display (320 × 240) for local readings and configuration
Up to 10 × 4–20 mA outputs passed through from the connected sensors
RS-485 Modbus RTU, RJ45 Ethernet and Bluetooth 5.0 connectivity
USB host port for sensor firmware upgrades
7-pin sensors connect directly; 8-pin sensors via the CC-78M adapter
Flying-lead output cables included (4 × 6-wire analog, 1 × 2-wire digital)
IP54 ABS enclosure; CE / RoHS / UKCA

Powering and displaying multiple Pyxis inline sensors from one point
Retrofitting Pyxis sensors to controllers or PLCs with limited sensor power
Cooling-tower, boiler and process water monitoring panels
Wastewater and drinking-water sensor stations
Remote sensor data via Ethernet / Modbus

PRODUCT MANUAL

Part number	MA-PS-5
Power input	100–240 VAC, 50/60 Hz, 3.0 A fuse
Power output	24 VDC, 30 W
Sensor capacity	Up to five Pyxis sensors simultaneously
Display	2.4″ colour, 320 × 240
Signal outputs	Up to 10 × 4–20 mA (from connected sensors); 1 × RS-485 Modbus RTU
Signal inputs	Up to 10 × 4–20 mA and RS-485 from Pyxis sensor outputs
Communication	RJ45 Ethernet (10 Mb/s); Bluetooth 5.0; USB host for sensor firmware upgrade
Sensor connection	7-pin: direct; 8-pin: via CC-78M adapter
Cables provided	4 × CS-FNS-2.6P 6-wire flying leads (1.5 m); 1 × CR-MR-2.6P 2-wire flying lead (1.5 m)
Enclosure	ABS, IP54
Operating temperature	0–50 °C (32–122 °F)
Dimensions / weight	125 × 125 × 76 mm (4.9 × 4.9 × 2.9 in); approx. 1.5 kg
Compliance	CE / RoHS / UKCA
