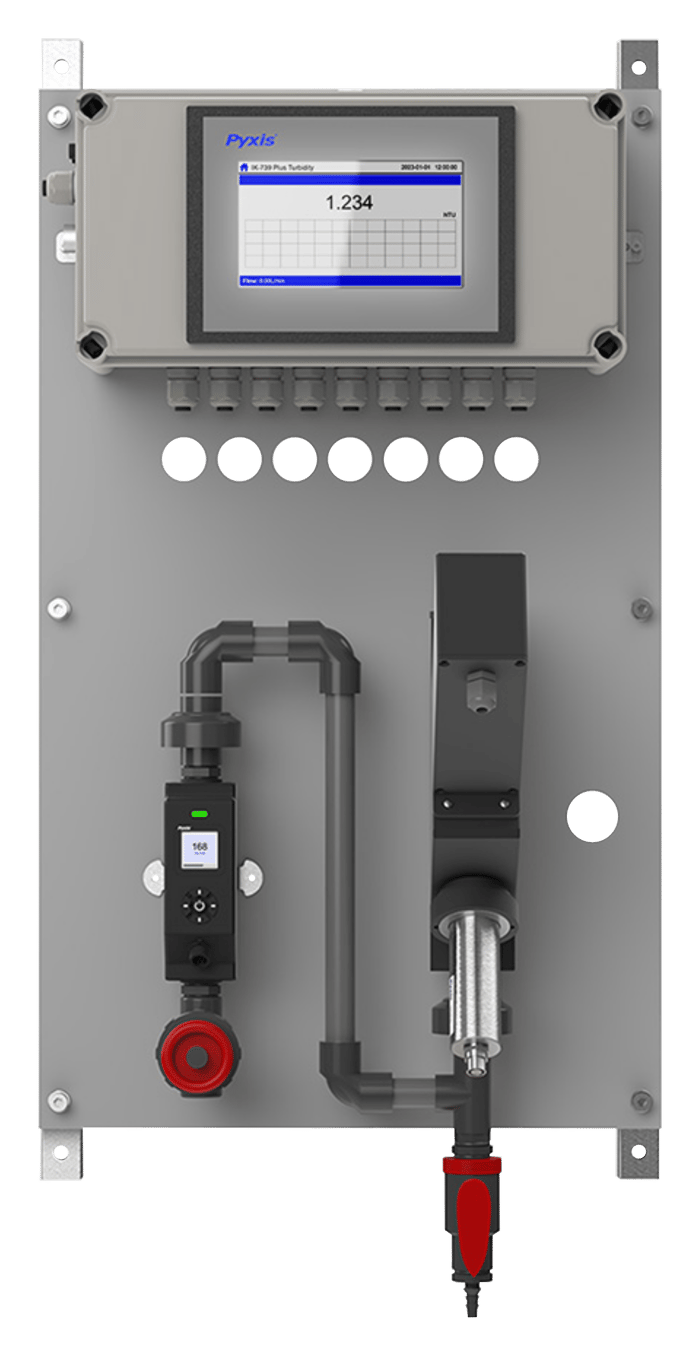

Pyxis IK-736 Plus Self-Cleaning Turbidity Analyzer Panel

Name: Pyxis IK-736 Plus Self-Cleaning Turbidity Analyzer Panel
Brand: Pyxis Lab

Pyxis IK-736 Plus Self-Cleaning Turbidity Analyzer Panel

The Pyxis IK-736 Plus is a panel-mounted, self-cleaning turbidity analyzer for 0–1,000 NTU. Its LT-736 ultra-low turbidity sensor sits in the FT-100 Plus motorised auto-brushing flow tee, which mechanically wipes the sensor’s flat quartz optical window on a programmable cycle, so readings stay stable in fouling-prone water without manual cleaning. The optics use a warm-white LED in 90° surface-scatter format to EPA 180.1 (an ISO 7027 infrared version is available on request).

An FS-100 ultrasonic flow sensor with motorised regulating valve holds sample flow in range, and the UC-100 7-inch touchscreen terminal logs data and provides 4–20 mA, RS-485 Modbus RTU and Modbus TCP outputs. It is part of the IK-73X Plus family alongside the 0–40 NTU IK-739 Plus, and is available with a CloudLink 4G gateway as the IK-736 Plus G.

Self-cleaning (auto-brushing) flow tee — motorised brush wipes the quartz window on a programmable cycle
0–1,000 NTU range with 0.002 NTU resolution; EPA 180.1 warm-white 90° scatter
Continuous measurement with FS-100 ultrasonic sample-flow sensor and motorised flow control
7″ industrial touchscreen (UC-100) with 4 GB logger, up to 1 million records
2 × 4–20 mA, RS-485 Modbus RTU and Modbus TCP; optional CloudLink 4G (Plus G)
Low sample pressure — runs from 7.5 psi inlet
Infrared ISO 7027 version available on request
IP65 display / IP67 sensor; CE / RoHS

Raw water and intake turbidity
Clarifier and sedimentation effluent
Filter influent / backwash and process water
Industrial and cooling-water monitoring
Wastewater final effluent
Sites with high fouling where manual cleaning is impractical

PRODUCT MANUAL

Part number	IK-736 Plus (12003); IK-736 Plus G with 4G gateway (12004)
Turbidity range	0.000–1,000 NTU (IK-739 Plus sister model: 0–40 NTU)
Resolution	0.002 NTU
Light source / method	Warm-white LED, 90° surface scatter, EPA 180.1; infrared ISO 7027 version on request
Cleaning	FT-100 Plus motorised auto-brushing flow tee, programmable cycle
Sample flow control	FS-100 ultrasonic transit-time flow sensor 0–3,000 mL/min with motorised regulating valve
Measurement interval	Continuous
Display / logging	7″ LED colour industrial capacitive touchscreen (UC-100); 4 GB, up to 1 million data / event records
Outputs	2 × 4–20 mA / RS-485 Modbus RTU / Modbus TCP (RJ-45); USB host
Inputs	2 × 4–20 mA / RS-485 Modbus RTU
Power	96–260 VAC, 50/60 Hz, 200 W, 10 A fuse
Sample conditions	4–45 °C; 7.25–100 psi (0.05–0.67 MPa); 100–2,000 mL/min; 1/2″ NPT line
Ambient	Instrument −20 to 55 °C storage; 20–90% RH non-condensing; < 2,000 m altitude
Protection rating	IP65 panel display; IP67 sensor
Dimensions / weight	750 H × 450 W × 243 D mm; approx. 15 kg
Compliance	EPA 180.1; CE / RoHS
