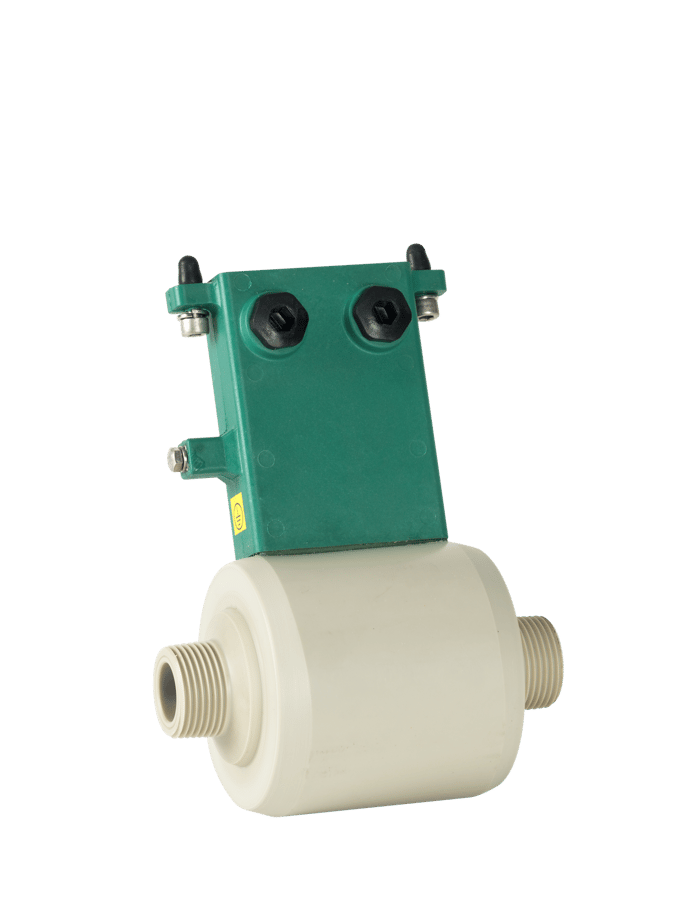

ISOIL ISOMAG MS600 Polypropylene Microflow Mag Meter
ISOIL ISOMAG MS600 Polypropylene Microflow Mag Meter
The ISOIL ISOMAG MS600 is a small-bore electromagnetic flow sensor for low flows, built entirely in polypropylene — body, liner and threaded connections — so the only metal in contact with the process is the electrodes. It covers 1/8″ to 3/4″ (DN 3–DN 20) with threaded UNI 338 or NPT connections and measures down to fractions of a litre per hour.
With electrode options up to tantalum and platinum and FPM or EPDM gaskets, the MS600 suits chemical dosing, metering-pump verification and small-line water applications where a metal-bodied meter is not appropriate. It runs on any ISOMAG MV-series transmitter, integral or remote, with the same bidirectional measurement and diagnostics as the larger sensors.
- Features & Benefits
- Applications
- Product manuals
- Product specs
- All-polypropylene wetted body, liner and connections — electrodes are the only wetted metal
- 1/8″ to 3/4″ sizes (DN 3, 6, 10, 15, 20); flow to 12,500 l/h
- Threaded UNI 338 or NPT process connections
- Electrode options — AISI 316, Hastelloy C-276, platinum-rhodium, titanium, tantalum
- FPM gasket standard, EPDM optional
- IP67 compact / IP68 remote sensor
- Compatible with all ISOMAG transmitters (MV110, MV145, MV210)
- Chemical dosing and metering skids
- Small-line water and process flows
- Coagulant, polymer and additive injection
- Conductive fluids ≥ 5 µS/cm
| Line sizes | DN 3 (1/8″), DN 6 (1/4″), DN 10 (3/8″), DN 15 (1/2″), DN 20 (3/4″) |
|---|---|
| Flow range | 0 to 12,500 l/h depending on size |
| Pressure rating | PN 16 (1,600 kPa) |
| Process connection | Threaded UNI 338 or NPT; others on request |
| Body / liner / connection material | Polypropylene |
| Gasket material | FPM standard; EPDM optional |
| Electrode materials | Stainless steel AISI 316, Hastelloy C-276, platinum-rhodium, titanium, tantalum (4 electrodes: 2 measuring + 2 grounding) |
| Liquid temperature | 0 to 60 °C (32 to 140 °F) |
| Minimum fluid conductivity | ≥ 5 µS/cm |
| Accuracy (system) | Per transmitter: ±0.4% of reading with MV110 / MV145; ±0.2% with MV210 |
| Protection rating | Compact IP67; remote (max 20 m) IP68; remote with pre-amplifier (max 500 m) IP67 / IP68 |
| Vacuum resistance | 10 kPa absolute at 60 °C |
