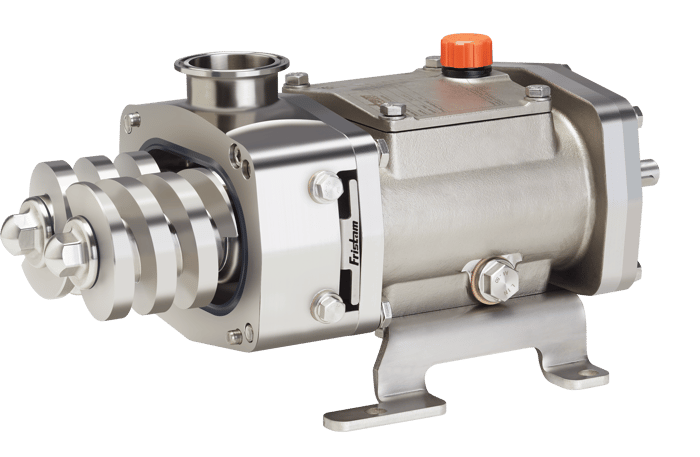

Fristam FDS Sanitary Twin Screw Pump
Fristam FDS Sanitary Twin Screw Pump
The Fristam FDS is a positive-displacement sanitary twin-screw pump designed to handle both viscous and low-viscosity fluids in a single hygienic system. Reimagined twin-screw technology delivers smooth, low-pulsation flow with contact-free screws — protecting shear-sensitive products while supporting clean-in-place and steam-in-place operation.
Six standard sizes (Nano through 5) cover flow rates up to 350 m³/h at pressures up to 25 bar (363 PSI), with viscosities to 1,000,000 cps and operating speeds up to 4,000 RPM. The three-piece casing accepts flexible connection types and front-loading mechanical seals (single or double, flushed or pressurized). The FDS handles process fluids and cleaning solutions through one pump, eliminating the need for a dedicated CIP loop.
- Features & Benefits
- Applications
- Product manuals
- Product specs
- Contact-free screws — smooth, continuous flow with low pulsation
- Process and CIP in one pump — reduces system complexity and capital cost
- Front-loading mechanical seals — single or double, flushed or pressurized configurations
- Reversible rotation — flexibility across forward and reverse process steps
- Three-piece casing — flexible connection types and easy maintenance access
- Flexible coupling — eliminates vibration between pump and driver
- 3-A Sanitary Standards certified; ATEX option available for hazardous environments
- Food & Beverage — sauces, pastes, fruit cocktails, oils, syrups, caramels
- Dairy — milk, creams, yogurts, and variegated products
- Pharmaceuticals & Life Sciences — proteins, immunoglobulins, blood, antibodies
- Cosmetics — thick creams and lotions
- Clean-in-Place (CIP) systems — detergents, solvents, cleaning chemicals
| Capacity / Flow | Product: 5–900 L/h (1.3–238 GPH); CIP: 3 m³/h (13.2 GPM) |
|---|---|
| Max Discharge Pressure | 10 bar (145 psi) FDS Nano; 25 bar (363 psi) FDS 1 |
| Max Speed | 4000 rpm (Nano); 3600 rpm (FDS 1); 2800 rpm (FDS 5) |
| Connection Sizes | 10–40 mm (0.39–1.57") Nano; 15–50 mm (0.59–1.97") FDS 1 |
| Max Temperature | 150 °C (302 °F) standard; 220 °C (428 °F) special version |
| Max Viscosity | 0.5 up to 1,000,000 cP |
| Gasket Options | FKM, EPDM, HNBR, FFKM |
| Seal Options | Single & double (flushed or pressurized) on FDS 1–5; single flushed on Nano |
| Certifications | 3-A, EHEDG |
