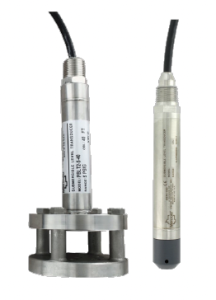

PBLT2 and PBLTX Submersible Level Transmitters are manufactured for years of trouble-free service in the harshest applications. Both measure the height of liquid above the position in the tank referenced to atmospheric pressure. The transmitters consist of a piezoresistive sensing element encased in a 316 SS housing. Perfect for wastewater and slurry applications with features to protect the unit from these demanding applications. Large diameter 316 SS diaphragm seal is non-clogging and damage resistant to floating solids.
The PBLT2 incorporates lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty). The PBLTX is UL approved as intrinsically safe for use in hazardous locations when used with a proper barrier.
Units come equipped with a 270-pound tensile strength shielded and vented cable. The ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The vent is protected with a maintenance-free filter eliminating particulate or water droplets from entering the transducers.
Features & Benefits:
Excellent chemical compatibility with 316 construction and ETFE cable
Lightning and surge protection on PBLT2 models
Maintenance-free vent filter
UL approved intrinsically safe on PBLTX models
Large diameter, non-clogging, damage resistant, 316 SS diaphragm seal
